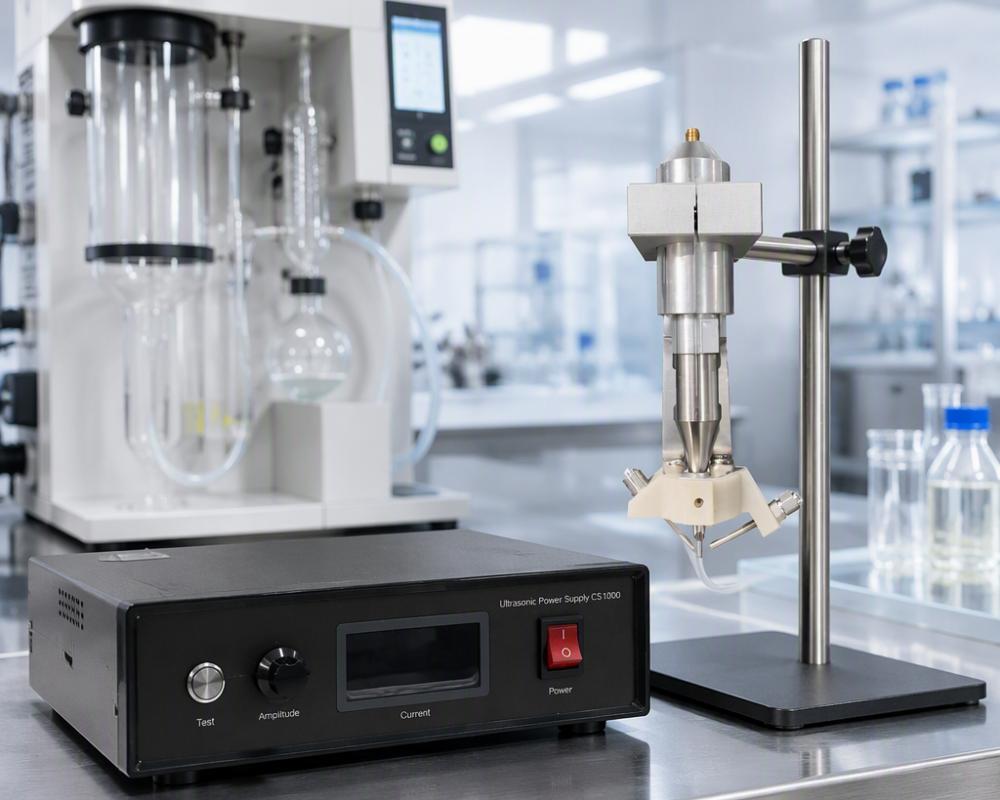

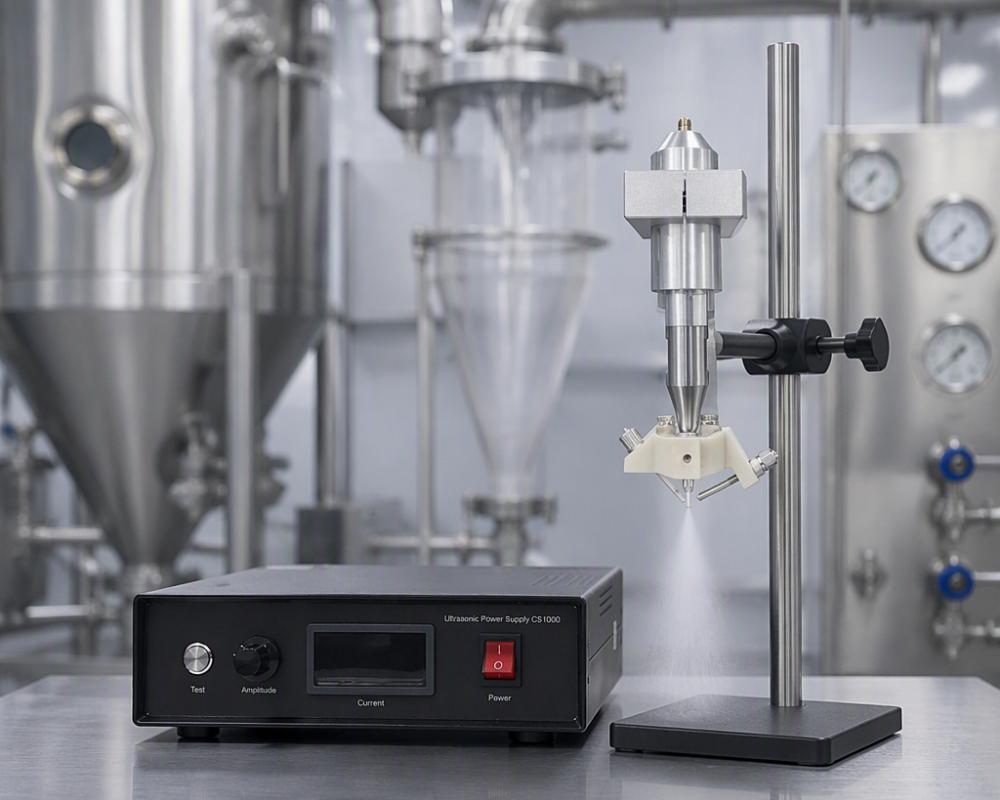

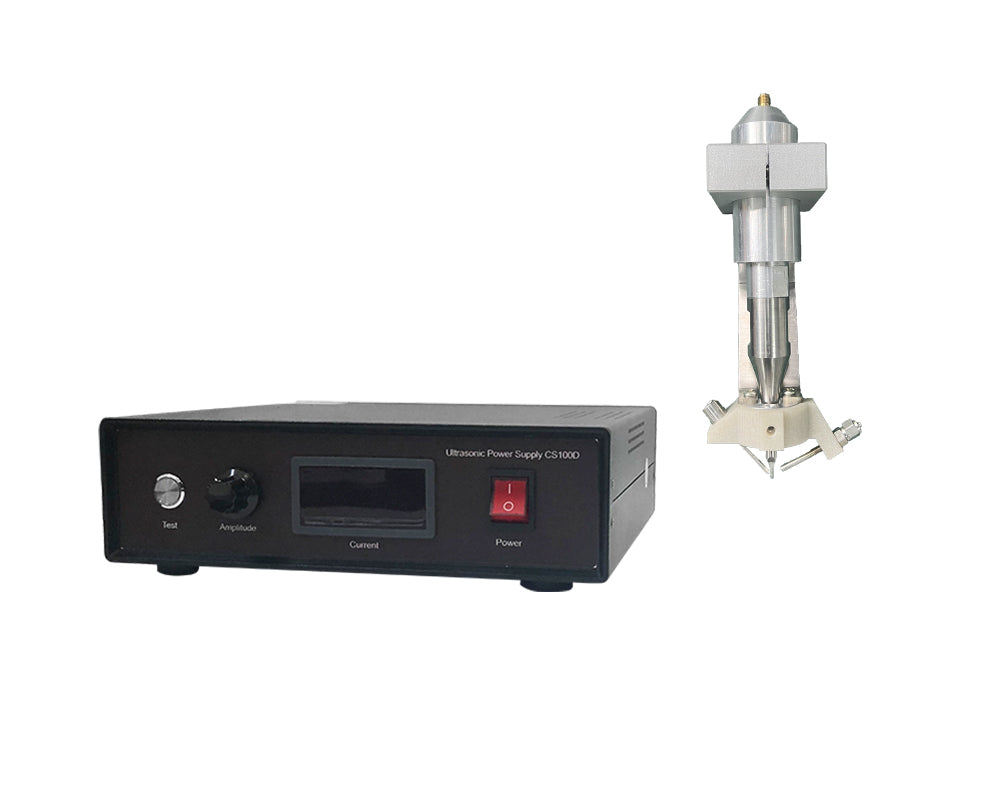

Ultrasonic Spray Drying Nozzle

Ultrasonic nozzles for spray drying spherical shape particles

Ultrasonic spray drying technology produces exceptionally spherical, uniform particles with narrow size distribution and unmatched process repeatability. The ultrasonic spray drying nozzle is a custom atomizer engineered exclusively for spray drying and microencapsulation workflows, setting it apart from conventional ultrasonic coating nozzles. It leverages high-frequency oscillation to generate highly homogeneous droplets, allowing accurate regulation of particle dimension and shape throughout drying or encapsulation operations.

Traditional pneumatic nozzles depend on high-speed turbulent airflow to shatter liquid jets. In contrast, ultrasonic atomization creates droplets via low-energy capillary waves generated within the nozzle body, which then disperse at the nozzle outlet. This mild atomization approach produces spherical, evenly sized droplets. After drying, these droplets turn into compact microcapsules with outstanding batch consistency, making the nozzle well-suited for pharmaceutical, nutritional supplement and advanced material manufacturing.

Advantages of Ultrasonic Spray Drying

• Tight droplet and particle size distribution with exceptional repeatability
• Highly spherical particle morphology, even for viscous or complex formulations
• Ability to produce larger, denser spheres compared to typical air-atomizing nozzles
• Virtually eliminates clogging, even with particle-laden or polymer-based feeds
• Gentle, low-shear atomization ideal for heat- or shear-sensitive materials
• Frequency-tuned droplet control (commonly 60 kHz) for adjustable particle size range


Applications

• Pharmaceutical and nutraceutical microencapsulation
• Protein and peptide formulation
• Food and flavor powders
• Functional materials, catalysts, and nanoparticles
• Academic and industrial R&D laboratories
