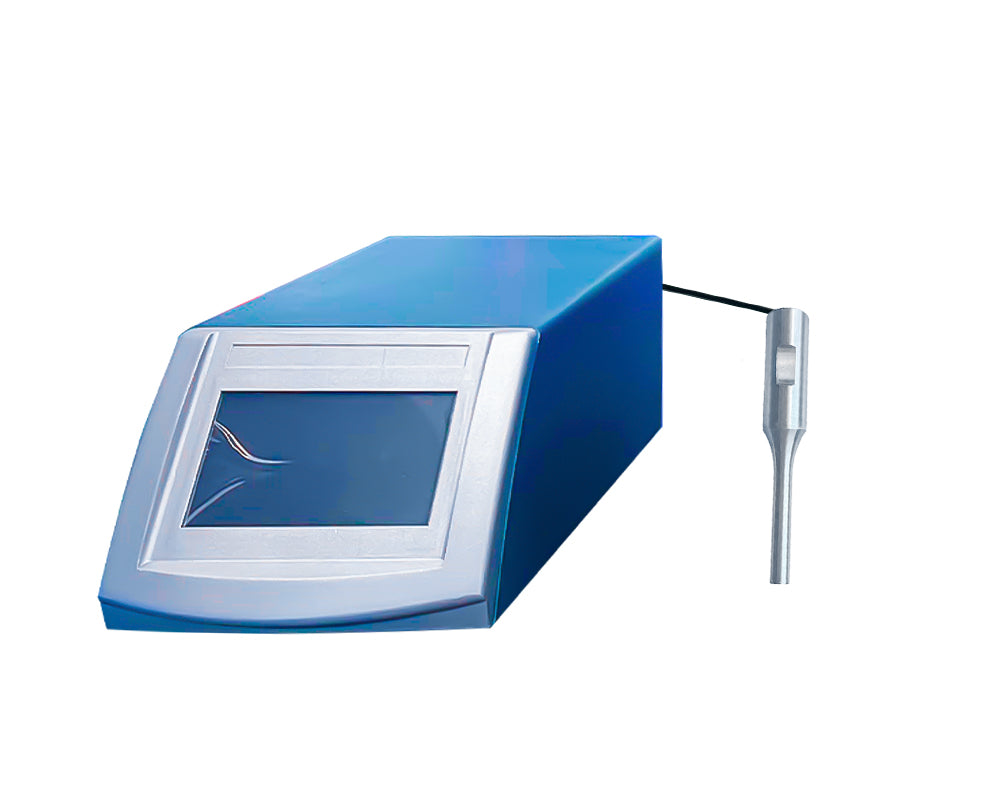

H100 Lab Ultrasonic Processor

The ULP100 is the perfect ultrasonic processor for the sonication of small and medium size lab samples. This powerful lab homogenizer is commonly used for sample preparation, such as emulsifying, dispersing, dissolving and cell disruption.

The ULP100 is used in particular in medical, biological or chemical laboratories. This device is most suitable for the ultrasonication of very small as well as medium-sized samples. For volume samples from 5mL up to 500mL we offer three replaceable probes with diameters from 3 to 8mm. This device is perfectly suited for handheld operation with its lightweight 0.7kg, but it can also be operated at a stand.

• Thumb-switch or continuous operation
• Handheld or stand-mounted
• Simple and effective operation
• Probes are available three different sizes: 3mm and 6mm,8mm
• Three power adjust: From 60%, 80%,100%
• Replacement converter

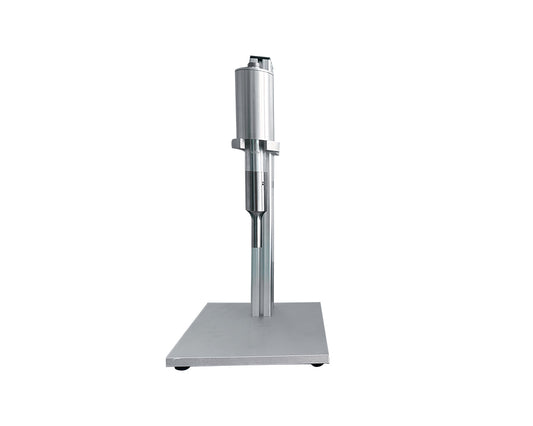

• Stand with clamp

• Output Power: 100watt
• Output Frequency: 20KHz
• Adjustable Pulse On/Off: 1 Second to 99 Second
• Programmability: 1
• Programmable Timer: 10 hours
• Program Export: NO
• Remote Upgrade: NO
• Input voltage: 220V-240V, 50/60Hz
• Rated current: 6A
• Capacity: Up to 50ml
• Dimensions: 347x290x125mm

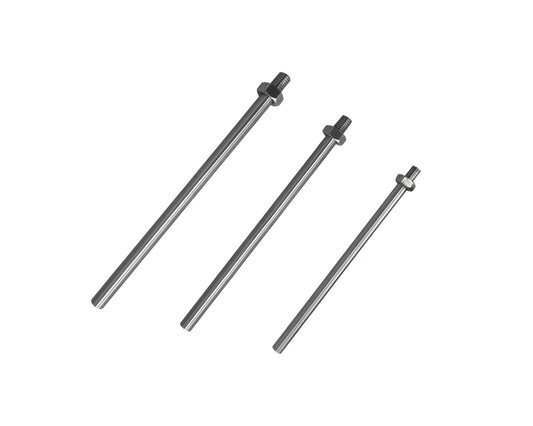

1. CS20-HR1302: 5/64"(2mm)

• Tool head with thread 1/4-28;
• Two transformations;
• Amplitude 200um
• Large head diameter 13mm

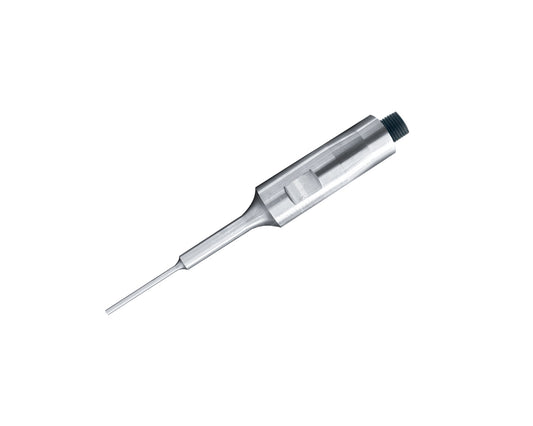

2. CS20-HR1303: 1/8"(3.2mm)

• Tool head with thread 1/4-28;
• Two transformations;
• Amplitude 200um
• Large head diameter 13mm

3. CS20-HR1306: 1/4"(6.4mm)

• Tool head with thread 1/4-28;
• Large head diameter 13mm
• One time transformation ratio;
• Amplitude 120um

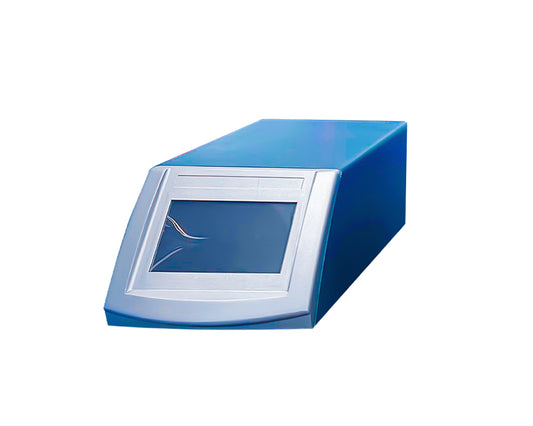

• Generator
• Converter
• 1/8” diameter probe
• Power cable
• Converter cable
• Wrench set

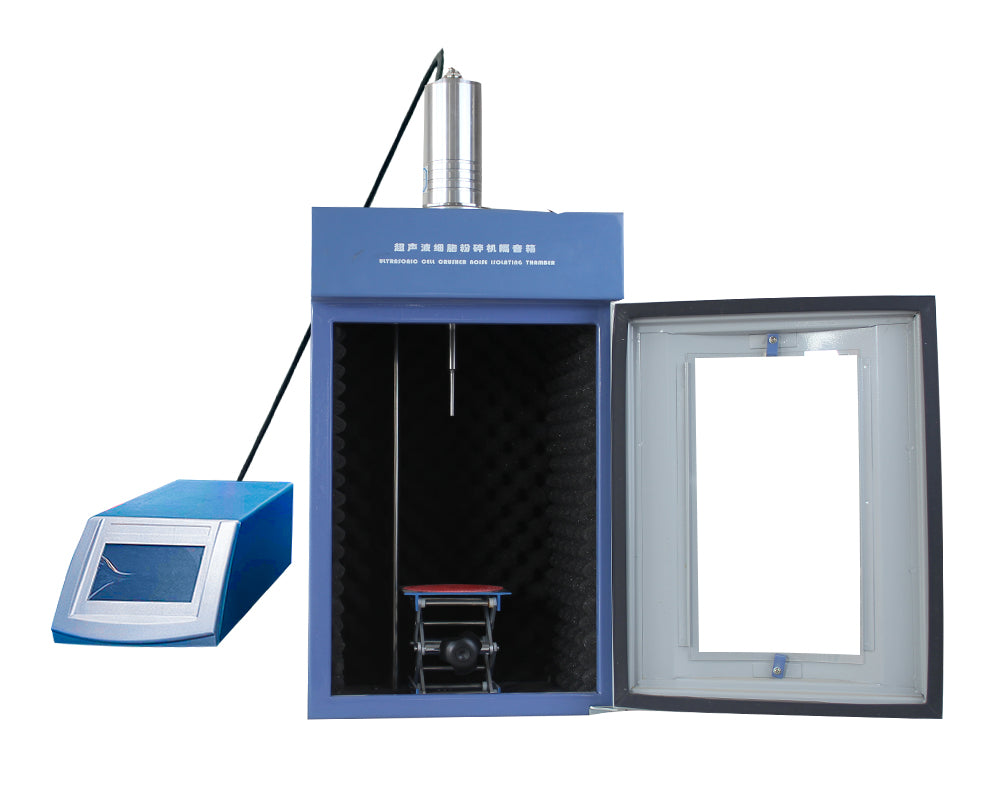

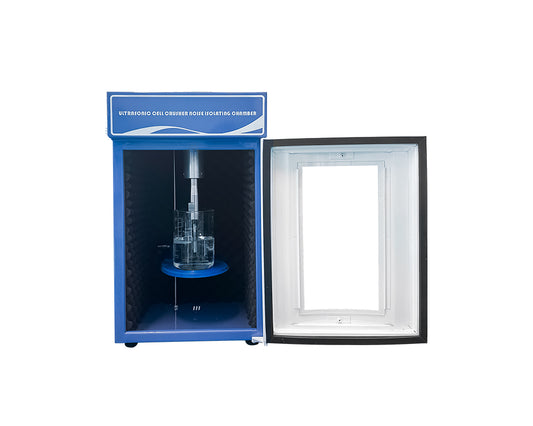

• Sound Enclosure
