Prosonic 1000 Ultrasonic Processor

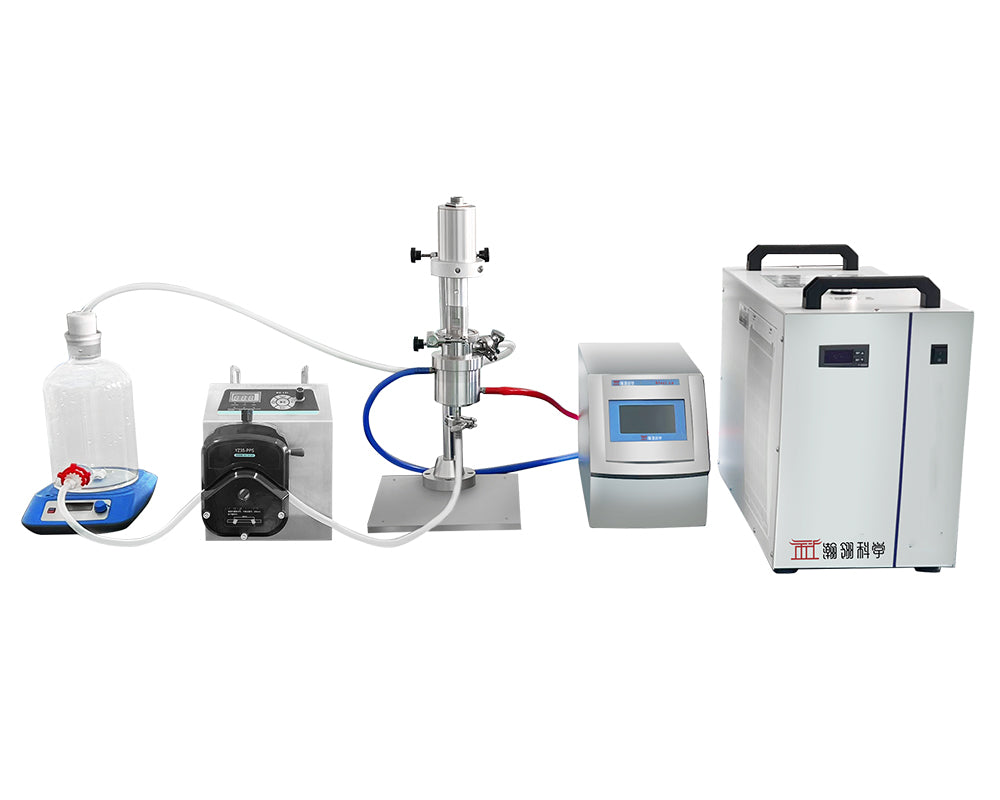

The Pro1000 benchtop laboratory ultrasonic liquid processor is specifically designed for process optimization and medium-scale production. It delivers up to 500W of ultrasonic power into processing liquids at an operating frequency of approximately 20kHz. This processor is equipped with five major ultrasonic components: a 500W ultrasonic generator, a sonotrode, a chiller, a peristaltic pump, and a magnetic stirrer with a heating plate.

Pro1000 is a reliable and durable choice for many applications. Avariety of tool head sare available, as well as other optional accessories such as heavy-duty supports, sound proof boxes, reactors, tap bottle, tanks/mixers with integrated stirrers, jacketed flasks and filters.

• Programmable
• Variable power output
• 10-hour timer
• Pulse mode
• Wattage and Energy display
• Temperature monitoring
• Energy setpoint

• Output Power: 500watt
• Output Frequency: 20KHz
• Adjustable Pulse On/Off: 1 Second to 24 Hours
• Programmability: 1000
• Programmable Timer: 70 hours
• Program Export: Yes
• Remote Upgrade: Yes
• Input voltage: 220V-240V, 50/60Hz
• Rated current: 10A
• Capacity: Up to 1 Liters

1. CS20-HR3813: 1/2"(12.7mm)

• Integrated tool head;
• Titanium alloy 3/8-24 thread;

2. CS20-HR3813T: 1/2"(12.7mm)

• End replaceable;
• Replaceable thread 1/4-28
• The thread of the replaceable part

3. CS20-HR3819: 3/4"(19.1mm)

• Integrated tool head;
• Titanium alloy 3/8-24 thread;

4. CS20-HR3817T: 3/4"(19.1mm)

• End replaceable;
• Replaceable thread 1/4-28
• The thread of the replaceable part

5. CS20-HR3825: 1''(25.4mm)

• Integrated tool head;
• Titanium alloy 3/8-24 thread;

6. CS20-HR3813F: 1/2"(12.7mm)with flange

• Integrated tool head;
• Titanium alloy 3/8-24 thread;
• Quick card flange

• Generator
• Converter
• 1/2” diameter probe
• Power cable
• Converter cable
• Wrench set
• Sound Enclosure
