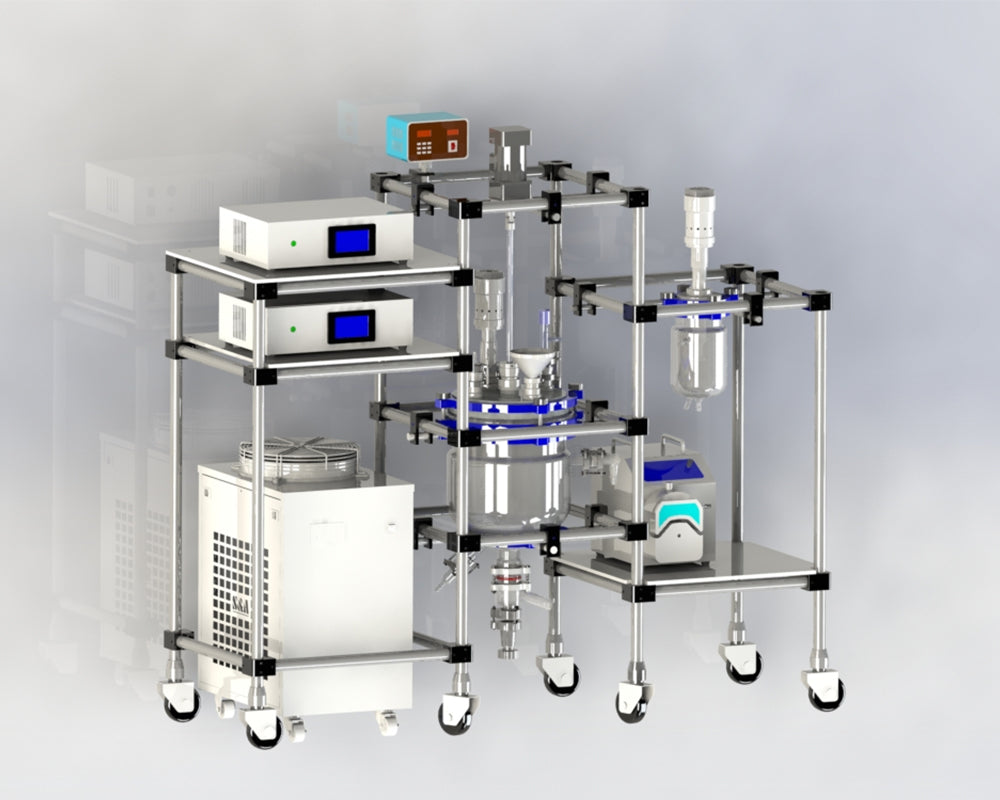

Prosonic6000 Industrial Ultrasonic Liquid Processor

The powerful ultrasonic processor Prosonic6000 is used when high power is needed for continuous operation. This high power system is particularly favorable. It has been adapted to the new technical conditions in terms of correct oscillation behavior. The modular concept of the Prosonic6000 provides you with a powerful and yet very space-saving system. The transducer and generator are housed separately from each other and are connected via cables. The self-contained design reduces the work required for installation, operation and maintenance to a minimum level.

• High processing volume
• Air cooling fan for the tranducer
• Water cooling for theflow cell
• Compact design

• Power Rating: 6000watts
• Frequency: 20kHz
• Dimensions: 535*380*145 mm
• Voltage: 110v,50/60Hz/220V

• Generator: Power cable
• Converter: Converter cable
• Titanium Alloy Horn: Wrench set
• Sound Proof Cabinet: Yes
• Sonotrode: STI-5
• MAX Processing
• Volume(l/min): 20
• Tip Diameter (mm): 55
• Tip Length (mm): 700
• Cooling system: Air-cooling fan on the transducer. Water-cooling flow cell
• Outstanding Energy Efficiency: Approx 70-80% from the power plug into the liquid
• Automatic Frequency Tuning: Generator finds the optimal operational frequency of the attached transducer-booster-sonotrode configuration
• Interdisciplinary use: Nanomaterial; paint & ink; coatings; food & beverage; pharmaceuticsand cosmetics; chemical processes; biological processes
• Test for free: Free sample test for you. Video of the experiment is supplied for customer.
• Simple and Effective: Very simple to setup and use
