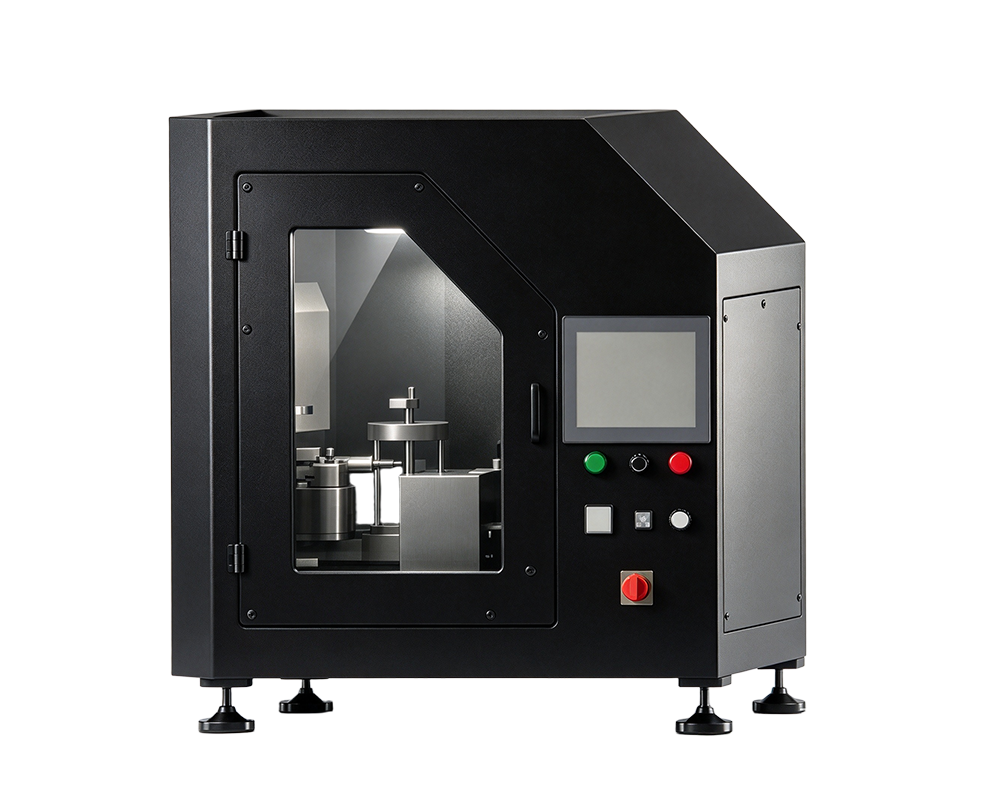

Chemisonic ES30 advanced laboratory electrospinning system for nanofiber research

Laboratory Electrospinning System: A Practical Guide to Nanofiber Research

October 8, 2026

Electrospinning is a flexible technique for producing continuous micro- and nanofibers from suitable polymer solutions and, in some configurations, polymer melts. The resulting fibers can form porous mats and membranes with structures that researchers can tailor by adjusting material formulations, process settings, and collection methods.

For university laboratories, research institutes, and industrial R&D teams, a laboratory electrospinning system is a practical platform for developing functional materials, studying process–structure relationships, and evaluating experimental conditions. Choosing the right equipment requires more than a voltage source and a collector: solution behavior, feed stability, the target fiber architecture, laboratory environment, and safety requirements all matter.

What Is a Laboratory Electrospinning System?

A laboratory electrospinning system applies a high-voltage electric field to a suitable liquid formulation. When the electrical forces overcome the liquid's surface tension, a charged jet emerges from the spinneret. The jet stretches as it travels toward a collector; for solution electrospinning, solvent evaporation helps solidify the fibers before or during deposition.

A conventional needle-based system generally includes four core components:

High-voltage power supply: creates the electric field needed to initiate and maintain the jet.
Solution feeding system: delivers the formulation at a controlled flow rate.
Spinneret or needle assembly: defines the point from which the charged jet is emitted.
Collector: receives deposited fibers and influences their arrangement and geometry.

Depending on the research objective, a system may also support specialized collectors, coaxial or multi-needle configurations, environmental monitoring, or other optional modules. Availability varies by equipment model, so researchers should confirm the configuration they need before purchase.

Research Applications of Electrospinning Equipment

Electrospun fibers combine fine diameters with a high surface-area-to-volume ratio. Their porous structures make them relevant to research across several materials-focused disciplines.

Advanced materials and polymer science

Electrospinning enables researchers to study polymer fibers, composite formulations, surface morphology, and the relationship between process conditions and material structure. It can support early-stage material development and controlled comparisons between formulations.

Membrane and filtration research

Electrospun fiber mats are investigated for filtration and separation applications, where pore structure, fiber diameter, surface properties, and mechanical behavior may influence performance. The required characteristics depend on the intended use and should be verified through application-specific testing.

Biomedical materials

Researchers investigate suitable electrospun materials for scaffold, wound-dressing, drug-delivery, and biomedical membrane studies. Biocompatibility, residual solvent, material purity, and relevant validation are essential; electrospinning alone does not establish suitability for clinical use.

Energy and functional materials

Electrospinning can be used in research into battery-related materials, fuel-cell components, sensors, functional coatings, and other advanced structures. Final properties depend on formulation, collection, post-treatment, and characterization rather than the instrument alone.

Key Parameters That Influence Nanofiber Formation

A key advantage of laboratory electrospinning is the ability to investigate how operating variables affect fiber morphology. These variables interact, so a setting that works for one formulation may not transfer directly to another.

1. Solution properties

Polymer concentration, molecular weight, viscosity, conductivity, surface tension, and solvent volatility all influence jet stability and fiber formation. Insufficient chain entanglement may lead to droplets or bead-rich structures instead of continuous fibers; excessive viscosity may make consistent feeding difficult. Establish a baseline for each material system rather than assuming one formulation will suit every polymer.

2. Applied voltage

Voltage contributes to the electric field that initiates and stretches the jet. Its effect depends on spinneret geometry, collector distance, solution properties, and other conditions. Increasing voltage does not automatically produce smaller or more uniform fibers; unsuitable settings can destabilize the process.

3. Flow rate

The feed rate controls the amount of solution supplied to the spinneret. If the rate is too high for the formulation and operating conditions, the liquid may not stretch or dry as intended, potentially contributing to beads, wet deposits, or an unstable jet. The goal is a stable supply that supports continuous fiber formation.

4. Tip-to-collector distance

The distance between the spinneret and collector affects the electric field and the time available for jet development and solvent evaporation. Too little distance can contribute to wet deposition for some solvent systems, while excessive distance may alter the field and collection behavior. Appropriate settings should be established experimentally.

5. Temperature and humidity

Environmental conditions can change solution behavior, solvent evaporation, surface morphology, and process stability. Humidity effects vary with the polymer and solvent system; record environmental conditions when comparing samples or investigating variation between runs.

6. Collector configuration

Collector design influences how fibers are deposited. A flat collector may be suitable for random nonwoven mats, while a rotating drum or specialized collector may be considered when alignment or a different geometry is required. Choose the collection method according to the target structure and confirm compatibility with the selected system.

How to Choose a Laboratory Electrospinning System

Start with the research question, then map it to equipment requirements.

Define the material system. Identify the polymer or formulation, solvent requirements, and any need for a controlled atmosphere.
Specify the target structure. Decide whether the project requires random fiber mats, aligned fibers, or more complex structures that may call for specialized spinnerets or collectors.
Check the working environment. Consider available bench space, electrical requirements, ventilation, solvent handling, and whether the equipment must fit within a compatible glovebox or other controlled workspace.
Review process control. Consider adjustability, solution delivery consistency, environmental monitoring where needed, and the ease of documenting experimental conditions.
Plan for future studies. If the research may expand to new materials or collection methods, ask which optional modules are available and whether they fit the intended workflow.

Chemisonic offers several research-oriented platforms that can be compared against these requirements:

ES10 Compact Laboratory Electrospinning System — a compact platform to evaluate when bench space or glovebox-based research is a consideration.
ES30 Advanced Laboratory Electrospinning System — a desktop research platform for laboratory-scale fiber fabrication studies.
ES50 Pilot Electrospinning System — a pilot-oriented configuration to consider for broader experimental arrangements.

These models have different configurations and intended use cases. Confirm required modules, operating specifications, installation conditions, and material compatibility with Chemisonic before selecting a system.

Practical Steps for More Reproducible Experiments

Reproducibility is essential when electrospun materials are used for publications, comparative studies, or process optimization. A disciplined experimental record helps separate meaningful changes from normal variation.

Document the formulation. Record polymer identity, concentration, solvent composition, preparation procedure, and solution condition.
Log the operating settings. Record voltage, feed rate, tip-to-collector distance, collector type, and relevant equipment configuration.
Monitor the environment. Note temperature, humidity, and controlled-atmosphere conditions when relevant to the experiment.
Vary parameters systematically. Use controlled comparisons or an appropriate design of experiments rather than changing several settings without a clear rationale.
Characterize the product. Assess properties relevant to the project, such as fiber diameter distribution, bead formation, surface morphology, membrane structure, and mechanical performance.
Repeat key runs. Repeated measurements help reveal variation and determine whether an observed improvement is robust.

A well-configured instrument supports experimental control, but it does not replace careful sample preparation, suitable characterization methods, or critical data analysis.

Laboratory Safety Considerations

Electrospinning combines high voltage with liquid formulations that may contain volatile, flammable, or hazardous solvents. Establish operating procedures based on the instrument manual, the formulation's safety data sheets, and the laboratory's risk assessment.

Use suitable ventilation and solvent-handling practices, appropriate grounding and electrical safeguards, and protective enclosures or interlocks as designed. Select personal protective equipment for the specific materials and procedure. If a fume hood, glovebox, or controlled workspace is required, verify system compatibility before installation. Never assume a setup suitable for one formulation is safe for another.

Frequently Asked Questions

What is a laboratory electrospinning system used for?

It is used to develop and study electrospun fibers and porous structures in polymer science, membrane research, biomedical materials, energy technologies, and functional coatings.

Which parameters affect nanofiber diameter?

Solution properties, voltage, flow rate, spinneret-to-collector distance, collector configuration, and environmental conditions can all play a role. Their relative importance depends on the formulation and equipment setup.

Can one electrospinning system produce different fiber structures?

Potentially, when compatible spinnerets, feed arrangements, and collectors are available. Single-needle, multi-needle, and coaxial configurations support different experiments, so verify the options and limitations of the particular model.

How can a lab improve repeatability?

Keep formulation records, standardize operating procedures, document environmental conditions, vary parameters systematically, characterize fibers consistently, and repeat important experiments.

What should researchers check before purchasing?

Confirm material compatibility, target fiber morphology, required collector and spinneret configurations, workspace and ventilation needs, electrical requirements, safety controls, and future experimental plans.

Conclusion

A laboratory electrospinning system is a useful platform for exploring nanofiber formation and developing advanced materials. Results depend on the interaction of formulation, operating conditions, collection geometry, and environment—not on a single machine setting.

For researchers choosing electrospinning equipment, begin with clearly defined experimental goals, check the system configuration against those goals, and maintain consistent documentation. Explore Chemisonic's ES30 Advanced Laboratory Electrospinning System and the other platforms above to compare the options relevant to your research.
